B Series Single-stage High Speed Centrifugal Blower

B Series Single-stage High Speed Centrifugal Blower

Product details

Product Introduction

On the basis of absorbing new technology inside and outside China, Changsha Blower Co.,Ltd. and Xian Jiaotong University teamed up to develop the centrifugal blowers, that include multistage low speed centrifugal blowers, single-stage low speed centrifugal blowers and single-stage high speed centrifugal blowers, three series, more than 100 models, with the capacity 50~2000m3/min and pressure rise 10~150kPa.  B Series Single-

stage High Speed Centrifugal Blower

Capacity 100~1000m3/min, pressure rise 49.0~140kPa, single-stage impeller, gearbox driving, sliding bearing, compulsive lubrication, single intaking, the B series centrifugal blowers are used to convey air, carbon dioxide, ammonia gas, coal gas, etc.

Derived Models

The following models are derived from the above three models:
●Sewage treatment blower capacity: 50~600m3/min    pressure rise:49.0~98kPa
●Desulfurization&oxidation blower   capacity: 60~800m3/minpressure rise: 49.0~150kPa
●Sulfur dioxide blower capacity: 200~2000m3/minpressure rise: 26.4~53.9kPa
●Gas-making furnace blower  capacity: 300~1500m3/minpressure rise: 23.5~34.3kPa
●Cupola blower capacity:50~350m3/minpressure rise: 9.8~29.4kPa
●Smelting furnace blower capacity:100~1000m3/minpressure rise: 49.0~150kPa
●Coal gas blowercapacity:100~1250m3/minpressure rise: 19.6~53.9kPa
●Coal flotation&washing blowercapacity:50~500m3/minpressure rise:19.6~68.6kPa

Model Selection

Model Introduction

For example:

C300–1.7/1.0  It means a multistage centrifugal blower, when temperature is 20℃, intake pressure is 1.0kgf/cm2(98kPa), relative humidity is 50%, the capacity is 300 m3/min, and discharge pressure is 1.7kgf/cm2(pressure rise 68.6kPa).

The performance range of blower could be determined approximately by capacity and pressure as drawing show, plus another conditions, a precise model could be confirmed by professionals.  Elements of Model Selection

● Technical conditions  Medium, intake conditions, capacity, pressure rise (or discharge pressure), ambient conditions.

●Model Selection Calculation  If the medium is air, intake conditions and ambient conditions are as same as the catalogue conditions, the model could be selected directly according to capacity and pressure rise (or discharge pressure) among the catalogue models.  If the medium, or intake conditions, or ambient conditions, are not as same as the catalogue conditions, (for example, the temperature or density is very different.) then the parameters of model selection should be calculated and rectified.

(1) Ambient temperature  The design temperature of blower is 20℃. For aeration blower, every 1℃ that intake temperature increases will lead a 0.002kgf/cm2 decline of discharge pressure. Thus, when the temperature is 40℃ in summer, the discharge pressure will decline 0.04kgf/cm2

(1) Altitude  The design intake pressure of blower is 1.0kgf/cm2. When the altitude is high, the capacity and discharge pressure should be rectified according to local atmosphere pressure.

(2) Capacity Conversion  If the standard capacity at standard condition(0℃,1.033kgf/cm2) is QN,  then the actual intake capacity at intake condition (ts,Ps) is Qs, there is a conversion formula:  Qs=( ts+273)/273×1.033/ Ps×QN  ts: intake temperature,℃  Ps: intake pressure,kgf/cm2

(3) Conversion between pressure unit in common use  9.8kPa=0.1 kgf/cm2=1000mmH2O=98mbar=0.0967atm=73.5mmHg

● Features
◎ Due to the advanced design of aerodynamic and NC milling, the impeller is of high efficiency.
◎ Flat performance curve means the stable working range is wide, and inlet prerotator is applied, so the capacity could be adjusted within the range of 50~105%.
◎ PLC and anti-surge technology, mechantronics, high degree of automation, reliable operation.
◎ The rotor is checked by strict overspeed test, and adjusted by high precision dynamic balance, so its operation is stable and reliable.
● Typical Performance Data of Single-stage High Speed Centrifugal Blower

Type Intake condition pressure rise (kpa) La(kW) Po(kW)
deliver medium capacity (m3/min) pressure (kgf/cm2) temperature (℃)








B50-1.5 air 50 1.0 20 1.5 47.1 55
B50-1.7 air 50 1.0 20 1.7 62.6 75
B100-1.5 air 100 1.0 20 1.5 91.3 110
B100-1.8 air 100 1.0 20 1.8 142 160
B100-2.0 air 100 1.0 20 2.0 179 200
B150-1.5 air 150 1.0 20 1.5 137 160
B150-1.8 air 150 1.0 20 1.8 213 250
B150-2.0 air 150 1.0 20 2.0 268 315
B150-2.5 air 150 1.0 20 2.5 358 400
B200-1.5 air 200 1.0 20 1.5 182 220
B200-1.8 air 200 1.0 20 1.8 285 315
B200-2.0 air 200 1.0 20 2.0 358 400
B200-2.5 air 200 1.0 20 2.5 471 560
B300-1.5 air 300 1.0 20 1.5 273 315
B300-1.8 air 300 1.0 20 1.8 427 500
B300-2.0 air 300 1.0 20 2.0 537 630
B300-2.5 air 300 1.0 20 2.5 700 800
B400-1.5 air 400 1.0 20 1.5 360 450
B400-1.8 air 400 1.0 20 1.8 563 630
B400-2.0 air 400 1.0 20 2.0 707 800
B400-2.5 air 400 1.0 20 2.5 940 1120
B500-1.5 air 500 1.0 20 1.5 451 500
B500-1.8 air 500 1.0 20 1.8 704 800
B500-2.0 air 500 1.0 20 2.0 883 1000
B500-2.5 air 500 1.0 20 2.5 1175 1400
B600-1.5 air 600 1.0 20 1.5 541 630
B600-1.8 air 600 1.0 20 1.8 844 1000
B600-2.0 air 600 1.0 20 2.0 1060 1250
B600-2.5 air 600 1.0 20 2.5 1396 1600
B800-1.5 air 800 1.0 20 1.5 713 800
B800-1.8 air 800 1.0 20 1.8 1113 1250
B800-2.0 air 800 1.0 20 2.0 1398 1600
B800-2.5 air 800 1.0 20 2.5 1880 2000
B1000-1.5 air 1000 1.0 20 1.5 892 1000
B1000-1.8 air 1000 1.0 20 1.8 1391 1600
B1000-2.0 air 1000 1.0 20 2.0 1747 2000
B1000-2.5 air 1000 1.0 20 2.5 2340 2500

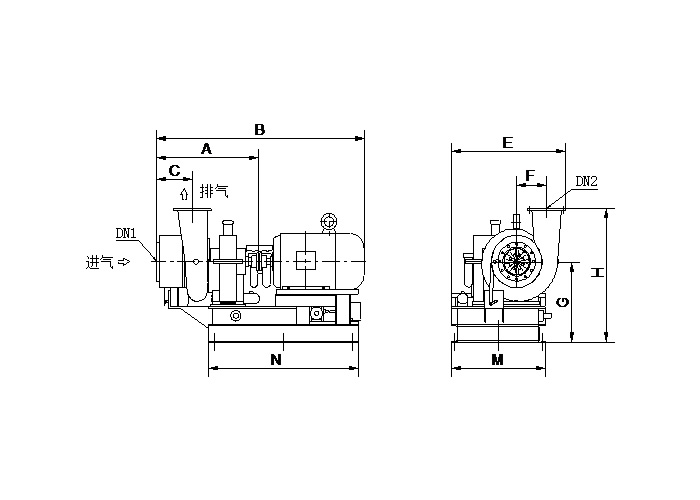

● Dimensions of Single-stage High Speed Centrifugal Blower Dimensions of B50-600 Typical Blower  (This is only for reference, the foundation should be built on the basis of contract drawing.)


A B C DN1 DN2 E F G H M N
B50-1.8 1050 2250 350 200 200 1200 320 950 1350 1000 2000
B100-1.8 1050 2450 350 300 250 1200 320 950 1350 1000 2000
B150-1.8 1200 2650 420 350 300 1400 385 1050 1580 1100 2300
B250-1.8 1500 3350 455 500 400 1600 555 1400 2050 1400 2800
B400-1.8 1650 4000 570 600 500 1850 685 1500 2230 1450 3200
B600-1.8 1800 4500 680 700 600 2000 810 1650 2650 1600 3500

● Supply Scope of Single-stage High Speed Centrifugal Blower

No. Standard Optional
Name Qty Name Qty
1 Blower 1 Inlet silencer 1
2 Inlet prerotator and electric actuator 1 Discharge silencer 1
3 Gearbox 1 Outlet flexible joint 1
4 Thin oil station 1 Outlet electric butterfly valve 1
5 Driver 1 Atmospheric silencer 1
6 PLC, spot control cabinet and primary instrument 1 Check 1
7 Anti-surge valve 1

8 common base 1

9 Anchor bolt, nut, washer 1

10 Spare parts 1
